Understanding the proper usage and safety precautions associated with a 240-volt outlet in a residential setting is crucial for homeowners, electricians, and anyone involved in electrical upgrades or repairs. Unlike conventional 120-volt outlets, which are familiar and widely used for standard appliances, 240-volt outlets provide the high power necessary for larger appliances such as dryers, ovens, and certain HVAC equipment. Yet, their higher voltage introduces increased risks if not handled appropriately. This comprehensive exploration aims to equip readers with foundational knowledge, safety protocols, best practices, and practical insights rooted in industry standards, helping ensure safe and effective use of these power sources within the home.
Demystifying the 240-Volt Outlet: Functionality, Types, and Applications
At its core, a 240-volt outlet is designed to deliver double the voltage of typical household outlets, providing the necessary power capacity for heavy-duty appliances. Within residential environments, these outlets are often associated with major appliances such as electric ranges, clothes dryers, and water heaters. The design of a 240-volt outlet varies depending on regional wiring standards, appliance requirements, and the specific application, but generally involves a dedicated circuit to handle high current loads safely.
Why is a 240-volt supply necessary? Many large appliances operate more efficiently or exclusively on 240 volts because they require substantial energy input to function optimally. For example, electric ranges may demand 40-50 amps, which cannot be adequately supplied through standard 120-volt circuits without risking overloads. Consequently, specialized outlets and breakers are implemented to facilitate safer, reliable operation.

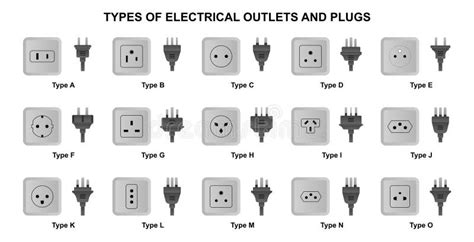

Common Types of 240-Volt Outlets in Homes
Understanding the types of outlets is necessary for correct and safe application. The most common in North America include the NEMA 14-30, NEMA 14-50, and NEMA 6-50 configurations. Each serves different purposes and has unique pin arrangements to match the respective appliances’ power cords and safety standards.
- NEMA 14-30: Typically used for older dryers; delivers 30 amps at 240 volts, with a neutral connection for laundry appliances requiring both 120-volt and 240-volt circuits.
- NEMA 14-50: Common for newer dryers, ranges, and welders, providing 50 amps with two hot lines, a neutral, and ground.
- NEMA 6-50: Frequently used for welding equipment or specific industrial appliances, offering 50 amps at 240 volts with two hot wires and ground but no neutral.
The selection of the correct outlet type is vital for both performance and safety, as mismatched outlets and plugs can lead to dangerous situations, including electrical shocks and fires.
Safety Precautions When Using 240-Volt Outlets
Handling high-voltage electrical outlets necessitates rigorous safety measures. The potential dangers include severe electric shocks, arc faults, and even fires if the wiring or components are compromised. Therefore, strict adherence to safety protocols is essential for preventing accidents and ensuring operational longevity of both outlet and connected appliances.
Core principles of safe operation
First and foremost, always ensure that the power supply is turned off before working on or inspecting any outlet. This may involve switching off the corresponding circuit breaker in the main panel, which should be clearly labeled to avoid confusion. Using a verified voltage tester before work begins is also essential to confirm the absence of live current.
Secondly, proper personal protective equipment (PPE), including insulated gloves and eye protection, mitigates accidental contact with energized parts. It’s also prudent to wear non-conductive footwear and to work on dry, insulated surfaces, especially when dealing with high amperage circuits.
Third, regular inspection and maintenance of wiring, connections, and receptacles prevent deterioration that could lead to faults. Over time, wiring insulation can degrade, terminals can loosen, and devices can become corroded, increasing the risk of shorts or shocks. Implementing a routine check by a qualified electrician is recommended.
Common hazards and how to avoid them
| Hazard | Preventive Measures |
|---|---|
| Electric Shock | Turn off power, verify with tester, avoid working alone, use insulated tools |
| Overloading Circuits | Ensure appliance matches outlet capacity, do not daisy-chain devices, respect circuit breaker ratings |
| Faulty Wiring | Ensure proper grounding, replace damaged wiring, adhere to electrical codes |
| Arcing and Fires | Install circuit interrupters (GFCIs), regularly inspect outlets, avoid using damaged plugs or cords |
Proper Installation and Connection Protocols
The installation phase is the foundation of safety and performance. Whether upgrading an existing outlet or installing a new one, several critical steps ensure compliance with standards and mitigate hazards. Only qualified electricians should undertake these tasks, given the technical complexity and safety implications involved.
Installation best practices
Preparation begins with reviewing the appliance manufacturer’s specifications and the local electrical code requirements. The circuit breaker must be appropriately rated (e.g., 30A, 50A) and compatible with the wiring gauge—copper conductors typically require a minimum of 10 AWG for 30A circuits, and 6 AWG for 50A circuits.

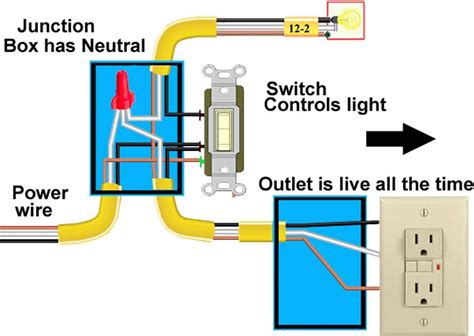

The wiring process involves carefully connecting hot wires (usually black and red) to the respective terminals, the neutral wire (white) if applicable, and the ground wire (green or bare copper) to the ground terminal. Securing connections tightly prevents arcing and voltage fluctuations. Using UL-listed components and adherence to manufacturer instructions are non-negotiable standards.
Post-installation, testing the outlet with a multimeter or outlet tester before connecting the appliance helps identify wiring issues or potential faults. It’s also advantageous to document the installation for future troubleshooting or upgrades.
Considerations for code compliance and safety enhancements
- Ensure all wiring is protected within conduit or conductors themselves rated for the environment.
- Verify that the circuit is protected with a breaker that trip at the rated current.
- Install GFCIs or AFCIs as required by local code, particularly in high-moisture or high-risk areas.
- Use weatherproof or tamper-resistant outlets where applicable, especially for outdoor or garage installations.
Troubleshooting Common Issues with 240-Volt Outlets
Even with proper installation and precautions, issues may arise over time, necessitating troubleshooting skills that can identify root causes. Typical problems include tripped breakers, inconsistent voltage delivery, or physical damage to outlet components.
Identifying and resolving typical problems
If an outlet intermittently trips or fails to deliver power, first check the circuit breaker for overload or fault. Resetting the breaker after ensuring the load is within capacity is a fundamental step. Voltage readings exceeding or below expected levels (e.g., 240V ± 5%) indicate wiring or breaker issues requiring professional evaluation.
Physical damage such as scorch marks, melting, or corrosion signals a potential fault that warrants immediate shutoff and replacement. Cracked or worn plugs, loose connections, or frayed cords should be replaced or repaired by certified electricians.
| Issue | Likely Cause | Recommended Action |
|---|---|---|
| Breaker trips frequently | Overload or short circuit | Reduce load, inspect wiring for faults, replace breaker if faulty |
| Low voltage at outlet | Wiring fault or high resistance connection | Use multimeter to diagnose wiring, call electrician for repairs |
| Outlet not working | Loose wiring or damaged outlet | Turn off power, inspect and tighten or replace |
Emerging Trends and Future Directions in Home Electrical Safety
The landscape of residential electrical systems is continuously evolving. Advances such as smart circuit breakers, remote monitoring sensors, and integration with home automation systems are shaping safer and more efficient homes. These innovations facilitate real-time diagnostics, automatic shutdowns, and predictive maintenance, all of which enhance reliability and user safety.
Moreover, increasing adoption of renewable energy sources and electric vehicle charging stations introduces new considerations for load management and wiring infrastructure, reinforcing the importance of professional oversight. As codes are updated to reflect these changes, staying informed through industry-standard training and certification becomes vital for electrical professionals.
Frequently Asked Questions about Safely Using a 240-Volt Outlet in Your Home
Can I plug any appliance into a 240-volt outlet?
+No, only appliances specifically designed to operate with a 240-volt power supply and equipped with compatible plugs should be connected. Mismatched appliances can lead to electrical faults, damage, or safety hazards. Always verify appliance specifications and consult a professional for compatibility concerns.
What safety devices should I use with 240-volt outlets?
+GFCIs (Ground Fault Circuit Interrupters) are highly recommended, especially in moisture-prone areas, as they cut power upon detecting leakage currents, reducing shock risk. Additionally, AFCIs (Arc Fault Circuit Interrupters) help prevent wiring faults that could ignite fires. Both are vital components aligned with modern safety standards.
Is professional installation required for a 240-volt outlet?
+Absolutely. Installing or modifying 240-volt circuits involves high risk and complex wiring that must adhere strictly to electrical codes. Certified electricians possess the necessary expertise, tools, and certifications to perform installations safely and code-compliantly, thereby minimizing hazards.
