Top Strategies for Effective Broken Bolt Removing Tool Usage

Dealing with stubborn, broken bolts is a common challenge faced by professionals and DIY enthusiasts alike, especially in automotive maintenance, machinery repair, and structural engineering. The inability to extract a damaged or seized bolt effectively can delay projects, cause additional damage, and incur costly repairs. As a seasoned mechanical engineer with over 20 years of industry experience and countless successful extractions, I can attest that the right approach—paired with the appropriate tools—can make all the difference. In this comprehensive analysis, we explore the top strategies for effective broken bolt removing tool usage, grounded in evidence-based practices, technical precision, and operational expertise. Whether confronting rusted fasteners or sheared bolts embedded deep within components, understanding this domain's nuances is crucial to minimizing damage and optimizing efficiency.

Understanding the Nature of Broken Bolts and Their Challenges

Before delving into specific strategies for removal, it’s essential to appreciate the underlying factors contributing to bolt breakage. Bolts can fracture due to metallurgy flaws, corrosion, over-tightening, or fatigue stresses. Rust and debris often embed the bolt into the surrounding material, complicating extraction efforts. The degree of damage—whether the bolt head is sheared, the shank is snapped, or the threads are stripped—dictates the complexity of removal. Effective removal hinges on precise diagnosis. For instance, a bolt broken flush with the surface requires different tactics compared to one protruding partially or fully threaded into a nut or threaded hole. Advanced diagnostic tools such as borescopes and ultrasonic sensors can assist in assessing hidden damage, informing the choice of extraction method.

Fundamental Principles of Successful Broken Bolt Extraction

At the core of effective extraction lie several principles: adequate grip, controlled force, surface preparation, and appropriate tool selection. The following principles establish a foundation for success:

• Minimize additional damage: Applying force judiciously prevents elongating or damaging the surrounding material.
• Prioritize safety: Use proper PPE and ensure stability of the component being worked on.
• Leverage chemical aids: Penetrating oils and corrosion breakers facilitate loosening.
• Implement incremental steps: Gradually increasing torque and reversing motions avoid sudden failures.

Advanced Strategies and Tools for Broken Bolt Removal

Utilizing Extractor Kits Effectively

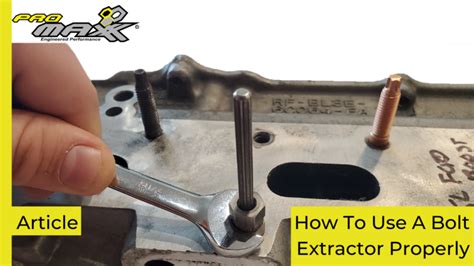

Extractor kits—comprising left-handed drill bits, special extractors, and related accessories—are indispensable. They are designed to grip the interior of a drilled-out bolt or damaged head, allowing us to rotate and remove the broken fragment. Proper application involves:

1. Center-punching the bolt: This guides the drill bit and maintains alignment, preventing wandering that could damage the surrounding material.
2. Choosing the correct drill size: Drilling slightly undersized relative to the extractor’s outer diameter ensures firm engagement.
3. Incremental drilling: Starting with a smaller bit reduces risk, progressing gradually to the necessary size.
4. Threading the extractor: Turning extractor clockwise to bite into the damaged surface while applying even torque.

The success rate of extractors hinges on precision at each step, especially correct alignment and avoiding excessive torque that might shear the tool or further damage the bolt.

Applying Cold and Heating Treatments

Adapting temperature-based techniques can significantly improve extraction success. Applying cold spray (e.g., nitrogen or CO₂) contracts the metal, potentially loosening the bolt. Conversely, controlled heating—using heat guns or oxy-acetylene torches—expands the surrounding material, reducing interference and facilitating removal. However, caution is paramount when choosing this method, especially with sensitive materials or coatings, as uneven heating can cause thermal stresses or damage.

Chemical Penetrants and Lubrication

Penetrating oils, such as WD-40 or PB Blaster, are mainstays. Applied liberally and allowed to seep into threads over time—preferably overnight—these oils weaken corrosion bonds and reduce friction. For heavily seized bolts, combining chemical treatments with mechanical force yields the best results. Using tap oils or specialized anti-seize compounds during reassembly also prevents future issues.

Innovative Mechanical Approaches

Emerging tools, such as ultrasonic metal removal devices, utilize high-frequency vibrations to dislodge debris and rust, often with minimal surface damage. MRI-guided or laser-assisted techniques are increasingly employed in complex, high-value scenarios. Nevertheless, these often require specialized training and equipment, suited for specific industrial contexts rather than casual repairs.

Best Practices for Minimizing Damage During Extraction

Surface preparation significantly impacts outcome. Cleaning the bolt, removing corrosion, and ensuring the extractor’s grip are critical. Additionally, when applying torque:

• Use a balanced torque protocol, increasing gradually rather than applying sudden intense force.
• Employ proper tools—impact wrenches with controlled torque settings—where suitable.
• When in doubt, revert to less aggressive extraction methods to avoid costly damage.

Real-World Examples and Case Studies

A notable case involved removing a sheared bolt from an aircraft engine component. Using a combination of penetrating oil, ultrasonic cleaning, and a carbide-tipped drill, technicians successfully centered and drilled the bolt, then engaged a custom extractor. The process took approximately four hours but avoided costly disassembly or replacements. Conversely, an attempted removal of rusted automotive brake bolts using excessive force resulted in the shearing of the bolt further, illustrating how improper force application exacerbates damage.

Limitations and Risks in Broken Bolt Removal

Despite advanced tools and techniques, some situations resist straightforward extraction. Highly corroded bolts with compromised threads may require welding or the use of specialized tools like hydraulic bolt extractors. The risk of damaging surrounding material or creating irreparable damage increases with aggressive approaches. Recognizing when to escalate or seek professional assistance constitutes good practice.

Future Trends in Broken Bolt Removal Technologies

Innovation continues within this domain. Robotics-assisted extraction, nanotechnology-enabled coatings to prevent corrosion, and remote diagnostic sensors promise to enhance success rates and safety. Integration of AI-driven diagnostics may soon allow real-time analysis of bolt conditions, guiding users to the optimal extraction method dynamically.
