Capacitors are a fundamental component in electronic circuits, and their ability to store and release electrical energy makes them a crucial part of many modern technologies. From simple applications like filtering and coupling to more complex uses in power supplies and audio equipment, capacitors play a vital role in ensuring the smooth operation of electronic devices. In this article, we will delve into the world of capacitors and explore five ways they work, providing a comprehensive understanding of their functionality and importance in the field of electronics.
Energy Storage and Release

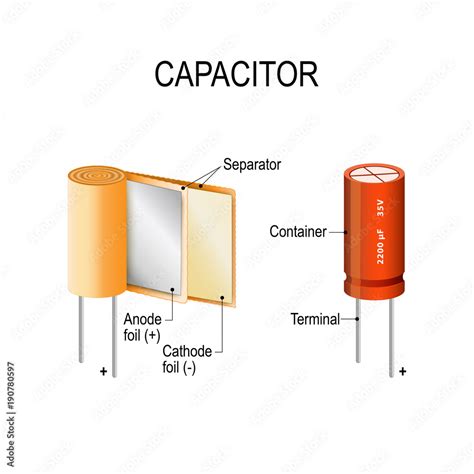

One of the primary functions of a capacitor is to store electrical energy in the form of an electric field. This is achieved through the use of two conductive plates, separated by a dielectric material, which can be air, ceramic, or other insulating substances. When a voltage is applied across the plates, electric charge builds up on the plates, creating an electric field. The amount of energy stored in a capacitor is directly proportional to the capacitance value, which is measured in farads (F), and the voltage applied across the plates. For instance, a capacitor with a capacitance of 100 μF can store approximately 0.5 joules of energy when charged to 100 volts. This stored energy can then be released back into the circuit as needed, making capacitors useful for applications like power filtering and smoothing.
Capacitor Types and Applications
There are several types of capacitors, each with its own unique characteristics and applications. Ceramic capacitors, for example, are commonly used in high-frequency applications due to their low equivalent series resistance (ESR) and high dielectric strength. Electrolytic capacitors, on the other hand, are often used in power supplies and audio equipment due to their high capacitance values and relatively low cost. Film capacitors, such as polyester and polypropylene, are used in applications where high stability and low dielectric absorption are required. Understanding the different types of capacitors and their applications is essential for designing and building effective electronic circuits.
| Capacitor Type | Characteristics | Applications |
|---|---|---|
| Ceramic | Low ESR, high dielectric strength | High-frequency applications, filtering |
| Electrolytic | High capacitance, relatively low cost | Power supplies, audio equipment |
| Film | High stability, low dielectric absorption | Audio equipment, power supplies |
Filtering and Coupling
Capacitors are often used as filters to remove unwanted frequencies or noise from a signal. By carefully selecting the capacitance value and resonance frequency, capacitors can be used to filter out specific frequency ranges, allowing only the desired frequencies to pass through. This is particularly useful in audio equipment, where capacitors are used to filter out low-frequency noise and hum. Additionally, capacitors can be used as coupling components to transfer signals between stages of a circuit while blocking DC voltage. This is commonly seen in audio amplifiers, where capacitors are used to couple the signal from the preamplifier to the power amplifier.
Resonance and Frequency Response
Capacitors also play a crucial role in determining the frequency response of a circuit. When a capacitor is used in conjunction with an inductor, it can create a resonant circuit, which can be used to filter out specific frequencies or amplify weak signals. The resonance frequency of a circuit is determined by the capacitance value and the inductance value, and can be calculated using the formula: f = 1 / (2π√(LC)). Understanding the frequency response of a circuit is essential for designing and building effective electronic systems.
Key Points
- Capacitors store electrical energy in the form of an electric field
- There are several types of capacitors, each with its own unique characteristics and applications
- Capacitors can be used as filters to remove unwanted frequencies or noise from a signal
- Capacitors can be used as coupling components to transfer signals between stages of a circuit
- Understanding the frequency response of a circuit is essential for designing and building effective electronic systems
Power Supplies and Audio Equipment
Capacitors are a crucial component in power supplies, where they are used to filter and smooth the output voltage. By storing energy in the form of an electric field, capacitors can help to regulate the output voltage and provide a stable power supply to the circuit. In audio equipment, capacitors are used to filter out low-frequency noise and hum, and to couple the signal from the preamplifier to the power amplifier. The type and value of capacitor used can significantly affect the sound quality of the audio equipment, making it essential to select the right capacitor for the job.
ESR and Dielectric Absorption
When selecting a capacitor for use in a power supply or audio equipment, it’s essential to consider factors like ESR and dielectric absorption. ESR (equivalent series resistance) refers to the internal resistance of the capacitor, which can affect the amount of energy lost as heat. Dielectric absorption, on the other hand, refers to the ability of the capacitor to absorb and release energy over time. Understanding these factors is crucial for designing and building effective electronic systems.
| Capacitor Characteristic | Description | Importance |
|---|---|---|
| ESR | Internal resistance of the capacitor | Affects energy loss as heat |
| Dielectric Absorption | Ability of the capacitor to absorb and release energy | Affects sound quality and energy storage |
What is the primary function of a capacitor in an electronic circuit?
+The primary function of a capacitor is to store electrical energy in the form of an electric field, which can then be released back into the circuit as needed.
What are the different types of capacitors, and what are their characteristics?
+There are several types of capacitors, including ceramic, electrolytic, and film capacitors. Each type has its own unique characteristics, such as capacitance value, voltage rating, and ESR, which make them suitable for different applications.
How do capacitors affect the frequency response of a circuit?
+Capacitors can affect the frequency response of a circuit by creating a resonant circuit with an inductor, which can be used to filter out specific frequencies or amplify weak signals. The resonance frequency of the circuit is determined by the capacitance value and the inductance value.
In conclusion, capacitors are a fundamental component in electronic circuits, and their ability to store and release electrical energy makes them a crucial part of many modern technologies. By understanding how capacitors work, and the different types and applications of capacitors, designers and engineers can create effective and efficient electronic systems. Whether used in power supplies, audio equipment, or other applications, capacitors play a vital role in ensuring the smooth operation of electronic devices.
