Capacitors are essential components in electronic circuits, and their connections can significantly affect the overall performance of a system. When capacitors are connected in series or parallel, their equivalent capacitance and other characteristics change. Understanding these changes is crucial for designing and analyzing electronic circuits. In this article, we will delve into the world of capacitors in series and parallel connections, exploring their behavior, applications, and implications for circuit design.

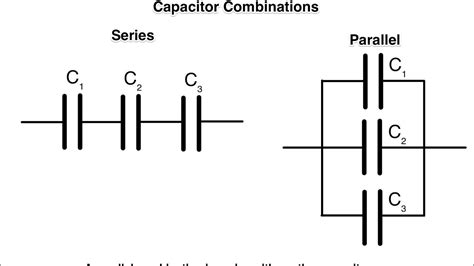

Capacitors in Series Connection

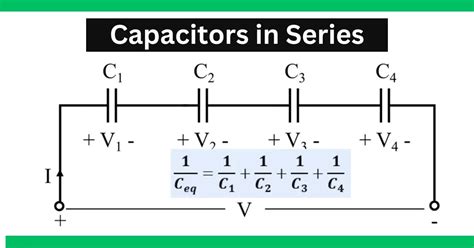

When capacitors are connected in series, the equivalent capacitance (C_eq) is less than any of the individual capacitances. The formula for calculating the equivalent capacitance of capacitors in series is given by:
1/C_eq = 1/C1 + 1/C2 +… + 1/Cn
where C1, C2,…, Cn are the individual capacitances. This formula can be derived by considering the charge stored on each capacitor and the voltage across each capacitor. The charge on each capacitor is the same, and the voltage across each capacitor is inversely proportional to its capacitance.
Key Characteristics of Series-Connected Capacitors
The key characteristics of series-connected capacitors include:
- Reduced Equivalent Capacitance: The equivalent capacitance of series-connected capacitors is less than any of the individual capacitances.
- Increased Voltage Rating: The voltage rating of the equivalent capacitance is the sum of the individual voltage ratings.
- Charge Distribution: The charge on each capacitor is the same, but the voltage across each capacitor is inversely proportional to its capacitance.
| Capacitor | Capacitance (μF) | Voltage Rating (V) |
|---|---|---|
| C1 | 10 | 100 |
| C2 | 20 | 200 |
| C3 | 30 | 300 |
Capacitors in Parallel Connection
When capacitors are connected in parallel, the equivalent capacitance (C_eq) is the sum of the individual capacitances. The formula for calculating the equivalent capacitance of capacitors in parallel is given by:
C_eq = C1 + C2 +… + Cn
where C1, C2,…, Cn are the individual capacitances. This formula can be derived by considering the charge stored on each capacitor and the voltage across each capacitor. The voltage across each capacitor is the same, and the charge stored on each capacitor is directly proportional to its capacitance.
Key Characteristics of Parallel-Connected Capacitors
The key characteristics of parallel-connected capacitors include:
- Increased Equivalent Capacitance: The equivalent capacitance of parallel-connected capacitors is the sum of the individual capacitances.
- Shared Voltage Rating: The voltage rating of the equivalent capacitance is the same as the lowest voltage rating of the individual capacitors.
- Charge Distribution: The charge stored on each capacitor is directly proportional to its capacitance, and the voltage across each capacitor is the same.
Key Points
- Capacitors in series connection have a reduced equivalent capacitance and increased voltage rating.
- Capacitors in parallel connection have an increased equivalent capacitance and shared voltage rating.
- The charge distribution on each capacitor depends on its capacitance and the connection type.
- Understanding the behavior of capacitors in series and parallel connections is crucial for designing and analyzing electronic circuits.
- Capacitor connections can significantly affect the overall performance of a system, and careful consideration is necessary to ensure optimal performance.
In conclusion, capacitors in series and parallel connections exhibit distinct characteristics that must be considered when designing electronic circuits. By understanding the behavior of capacitors in these connections, designers can create more efficient, reliable, and high-performance systems.
What is the main difference between capacitors in series and parallel connections?
+The main difference between capacitors in series and parallel connections is the way the equivalent capacitance is calculated. In series connections, the equivalent capacitance is less than any of the individual capacitances, while in parallel connections, the equivalent capacitance is the sum of the individual capacitances.
How do capacitors in series connection affect the voltage rating of the equivalent capacitance?
+Capacitors in series connection increase the voltage rating of the equivalent capacitance, as the voltage rating of the equivalent capacitance is the sum of the individual voltage ratings.
What is the key consideration when designing circuits with parallel-connected capacitors?
+The key consideration when designing circuits with parallel-connected capacitors is to ensure that the voltage rating of the equivalent capacitance is not exceeded, as the voltage rating of the equivalent capacitance is the same as the lowest voltage rating of the individual capacitors.
