Drilling stainless steel remains one of the more technically demanding tasks in metalworking and manufacturing. Known for its corrosion resistance, strength, and durability, stainless steel is a favored material across industries ranging from biomedical devices to aerospace components. However, these same properties—particularly its high tensile strength and work-hardening capabilities—pose significant challenges during drilling operations. Navigating these obstacles requires a nuanced understanding of the underlying material behavior, advanced tooling practices, and precise operational control. As an engineer with over 15 years of practical experience in materials processing and tool design, I aim to distill the complexities of efficient stainless steel drilling into a comprehensive, evidence-backed guide. This article synthesizes industry standards, cutting-edge techniques, and scientific insights to equip professionals with the expertise necessary to optimize productivity while maintaining high-quality standards.
Understanding Stainless Steel’s Material Properties and Their Impact on Drilling
At its core, stainless steel’s resistance to corrosion stems from a resilient chromium oxide layer that forms on its surface, providing durability in harsh environments. This passive layer, while beneficial for many applications, also complicates machining processes, especially drilling. The addition of alloying elements such as molybdenum, nickel, and manganese enhances corrosion resistance but simultaneously increases material hardness. Typical grades like 304 and 316 are among the most commonly drilled types, each presenting unique challenges due to their chemical compositions and mechanical properties.
One crucial factor influencing drill performance is the material’s tendency to work-harden. When exposed to mechanical deformation—for example, during drilling—the surface layers of stainless steel rapidly increase in hardness. This phenomenon can double the material’s tensile strength locally, making subsequent cutting more difficult and increasing tool wear. The tendency to work-harden is particularly pronounced in austenitic stainless steels like 304, which exhibit high ductility but low initial hardness. Therefore, understanding these behaviors helps in selecting appropriate tooling and process parameters.
Key Challenges in Drilling Stainless Steel and How to Overcome Them
The primary obstacles encountered during stainless steel drilling include rapid tool wear, tendency for work-hardening, chip clogging, and heat generation. Each of these issues can compromise the quality of holes, extend cycle times, and increase operational costs.
- Tool wear and breakage: Stainless steel’s abrasiveness, particularly due to inclusions of carbides and other impurities, accelerates cutting tool degradation. This often results in dullness, reduced accuracy, and eventual tool failure.
- Work-hardening: Rapid increase in local hardness can cause drill bits to seize or diminish their cutting efficiency, especially without proper speed and feed adjustments.
- Chip evacuation: Insufficient clearance causes chips to clog the hole, leading to increased torque and potential tool breakage. Efficient chip removal is essential for maintaining cutting performance.
- Heat generation: Excessive heat during drilling causes thermal expansion, softening of tool materials, and possible dimensional inaccuracies. Effective heat control preserves tool life and dimensional precision.
Addressing these challenges is foundational to mastering stainless steel drilling techniques. It involves selecting the right tooling, optimizing process parameters, and employing auxiliary cooling methods.
Optimizing Tool Selection for Stainless Steel Drilling

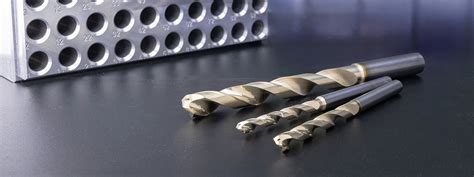

Tool choice is arguably the most critical aspect of efficient stainless steel drilling. High-performance tooling minimizes wear, reduces breakage, and ensures dimensional accuracy. The predominant drill types include twist drills, step drills, and cobalt or carbide variants tailored for high-hardness materials.
Material and Coating Considerations
For stainless steel, especially grades 304 and 316, carbide drills with appropriate coatings like titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) offer superior performance. These coatings reduce friction, inhibit adhesion, and enhance resistance to high temperatures, enabling longer tool life.
Moreover, cobalt high-speed steel (HSS-Co) drills serve as cost-effective alternatives with decent performance in work-hardening environments. However, their wear resistance does not match carbide tools, making them less suitable for high-volume or precision applications.
Design Features of Effective Drills
Effective drills for stainless steel often possess split-point tips, which reduce lateral stresses during entry and improve centering accuracy. Flute geometry with optimized helix angles—typically around 30° to 40°—facilitates better chip evacuation and minimizes clogging. Additionally, increased drill diameter length and ground cutting edges improve stability and reduce vibration, enhancing precision.
| Relevant Category | Substantive Data |
|---|---|
| Coating Type | TiN, TiCN, AlTiN with proven temperature resistance up to 900°C |
| Preferred Drill Material | Carbide with cobalt binder content of 3-8% |
| Helix Angle | 30° - 40° optimized for chip flow in stainless steel |
| Point Angle | Normally 118° – 135° for general purpose drilling |
Establishing Optimal Drilling Parameters for Stainless Steel
Precision in process parameters—namely spindle speed (RPM), feed rate, and drilling depth—is paramount. These variables influence heat generation, tool wear, and workpiece integrity. The goal is to balance high productivity with minimal thermal and mechanical stress on tools and materials.
Spindle Speed and Feed Rate Dynamics
General guidelines indicate that for stainless steel, especially 304 and 316, spindle speeds should range between 50 to 150 meters/minute (m/min), translating to approximate RPMs based on drill diameter. For example, with a 6mm drill, an RPM of around 1500-2500 is typical. Increasing speed beyond these ranges accelerates work-hardening and thermal degradation without proportional gains in productivity.
Feed rates should be moderate—roughly 0.05-0.15 mm/rev—reducing mechanical stress and controlling heat. Excessive feed can overload the drill, leading to chipping or breakage, while too slow increases cycle times unnecessarily.
Cooling Techniques
Implementing effective cooling methods—chiefly through flood coolant or high-pressure through-spindle cooling—dramatically improves tool longevity and hole quality. Cutting oils with high lubricity reduce adhesion and minimize built-up edge formation. At higher speeds or more demanding applications, cryogenic cooling or vapor-phase cooling may further extend tool life and reduce thermal distortion.
| Operational Metric | Optimal Range |
|---|---|
| Spindle Speed (RPM) | 1500 - 2500 RPM for 6mm drills |
| Feed Rate | 0.05 - 0.15 mm/rev |
| Cooling Method | High-pressure coolant or cryogenic cooling in demanding contexts |
Technique and Workflow for Effective Stainless Steel Drilling
Having selected appropriate tooling and set optimal parameters, attention must turn toward disciplined execution and workflow management. This involves pre-drilling preparations, real-time process adjustments, and post-drilling inspections.
Pre-drilling Preparations
Marking and center-punching the drill point helps prevent wandering and misalignment. Securing the workpiece firmly minimizes vibrations. Using pilot holes for large diameters reduces load on the main drill and facilitates accurate hole placement.
Execution and Monitoring
Starting at a lower speed to penetrate the initial layers, then gradually ramping up to target RPM ensures controlled engagement. Continuous monitoring of torque and sound during drilling provides immediate cues—excessive noise or vibrations often indicate tool wear or improper parameters.
Post-drilling Inspection
Examining hole dimensions and surface finish using coordinate measuring machines (CMM) or optical comparators verifies adherence to specifications. Identifying signs of work-hardening or tool wear informs maintenance schedules and process adjustments for future operations.
Key Points
- Precise tool selection with coated carbide drills tailored for stainless steel enhances longevity and quality.
- Optimized cutting parameters balancing high spindle speeds with moderate feed rates prevent work-hardening and thermal damage.
- Advanced cooling methods extend tool life and achieve superior surface finishes.
- Systematic workflow involving preparation, execution, and inspection ensures consistent results.
- In-depth understanding of material behavior and cutting mechanics is vital for mastering stainless steel drilling.
Future Directions and Emerging Technologies in Stainless Steel Drilling
The landscape of stainless steel machining continues to evolve with innovations such as ultra-hard coatings like diamond-like carbon (DLC), laser-assisted drilling, and automation-driven adaptive control systems. These advancements aim to further mitigate heat buildup, extend tool life, and improve process precision.
For example, laser-assisted drilling introduces localized heating, softening the material momentarily to facilitate easier cutting—a promising avenue for complex geometries. Similarly, sensor-based machine controls enable real-time adjustments, reducing human error and optimizing productivity.
As industries push toward Industry 4.0 standards, integrating data analytics and machine learning into machining systems will likely become commonplace, allowing predictive maintenance and smarter process optimization.
What are the best drill types for stainless steel?
+Typically, cobalt high-speed steel (HSS-Co) and carbide drills with TiN, TiCN, or AlTiN coatings are preferred based on application demands. Carbide drills with specialized flute geometries and split points tend to deliver superior performance for high-volume or high-precision tasks due to their enhanced hardness and heat resistance.
How can I prevent work-hardening during drilling?
+Maintaining optimal cutting speeds and feeds, utilizing effective cooling, and selecting sharp, coated tools help minimize heat accumulation and mechanical stresses that induce work-hardening. Additionally, employing shallow drilling depths and step-wise procedures further reduce the risk.
What cooling methods are most effective for stainless steel drilling?
+High-pressure flood coolant delivers consistent lubrication and chip removal, substantially lowering temperatures. For high-performance applications, cryogenic or vapor-phase cooling techniques can further stabilize temperatures, extending tool life and enhancing surface finish quality.
