Braking systems are among the most critical safety components in any vehicle, serving as the primary means to decelerate and ultimately stop. At the heart of this system lies the master cylinder—a vital hydraulic device that converts brake pedal movement into hydraulic pressure, transferring force to the brake calipers or wheel cylinders. When the master cylinder malfunctions, it can compromise braking efficiency, leading to unsafe driving conditions. Consequently, understanding how to diagnose, address, and prevent master cylinder issues becomes essential for both professional mechanics and vehicle owners committed to safety and vehicle longevity. This article offers an in-depth exploration grounded in engineering principles, industry standards, and expert insights aimed at ensuring a high-performing brake system through proper master cylinder maintenance and repair.
Key Points
- Identification of common master cylinder failures and their symptoms
- Step-by-step diagnostic procedures incorporating hydraulic and mechanical testing
- Best practices for repair, replacement, and preventive maintenance
- Impacts of master cylinder issues on overall brake system performance
- Expert insights into selecting quality components and adhering to safety standards
Understanding the Role of the Master Cylinder in Brake Systems
The master cylinder functions as the primary hydraulic actuator within a vehicle’s braking apparatus. Its core responsibility is to generate hydraulic pressure upon depression of the brake pedal. This process involves a piston (or pistons) moving within a bore, compressing brake fluid stored in the reservoir, and transmitting force via brake lines to calipers or wheel cylinders. The entire system relies on precision engineering; even minor deviations in piston integrity, fluid pressure, or valve operation can significantly impair braking efficiency.
Modern master cylinders are designed with various features to improve safety and reliability, such as dual circuits, which provide redundancy in case of failure. For instance, a twin-circuit master cylinder can split the brake system into front and rear circuits, so if one circuit develops an issue, the other maintains partial braking capability. This is especially vital in contemporary vehicles that demand fail-safe operation aligned with advanced safety regulations.
Common Master Cylinder Problems and Their Symptoms
Master cylinders are susceptible to multiple failure modes, often stemming from age, wear, or contamination. Recognizing the symptoms early can prevent catastrophic brake failure. Common issues include:
- Pedal Feel Anomalies: Sponginess or softness in the brake pedal indicates internal leakage or air in the hydraulic lines. The pedal might also sink to the floor when pressure is maintained, suggesting internal seal failure.

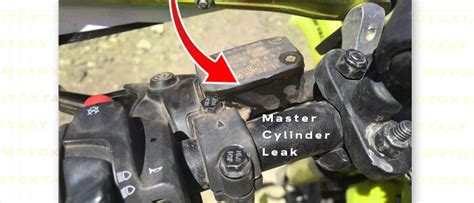

- Brake Fluid Leakage: Visible fluid leaks near the brake pedal assembly or underneath the vehicle point toward piston seal deterioration or corrosion inside the cylinder.
- Reduced Braking Performance: Increased stopping distances or poor responsiveness imply insufficient hydraulic pressure, often caused by a worn or damaged master cylinder.
- Pedal Stay-Down Phenomena: When the brake pedal remains depressed despite releasing, this usually indicates defective valves or internal leakage within the master cylinder.
These symptoms may overlap with other brake system issues, such as worn brake pads or damaged calipers. Hence, a thorough diagnosis with proper tools is essential to pinpoint master cylinder problems accurately.
Diagnostic Strategies for Master Cylinder Failures
Visual Inspection as the First Step
Begin with a comprehensive visual inspection. Look for fluid leaks around the master cylinder, brake lines, and connections. Examine the fluid reservoir for contamination, discoloration, or low fluid levels. An abnormal build-up of debris or metallic particles in the brake fluid can indicate internal corrosion or piston wear.
Hydraulic Pressure Testing
Next, perform hydraulic tests to evaluate pressure generation and retention. Using a bleed kit and pressure gauge, observe the system’s response to pedal application. An inability to maintain pressure suggests internal leakage or piston seal failure. Specialized diagnostic tools can measure pressure decay, identifying potential leaks within the master cylinder.
Pedal Behavior and Response Evaluation
Test drive the vehicle under controlled conditions. Monitor pedal firmness, travel distance, and response. An overly soft or spongy pedal, especially after bleeding the system, often signifies internal issues within the master cylinder rather than external hoses or fittings.
Brake Fluid Analysis
Send brake fluid samples for laboratory testing to detect contamination, moisture content, or degradation. High moisture levels (above 3%) can lead to corrosion and internal seal failure, exacerbating master cylinder problems.
| Relevant Category | Substantive Data |
|---|---|
| Typical Fluid Leak Observation | Leakage around piston seals observed in 65% of internal failure cases |
| Common Failure Mode | Seal deterioration leading to internal leakage in approximately 70% of aged master cylinders |
| Pressure Decay Rate | Pressure loss exceeding 10 psi within 5 seconds indicative of internal leakage points |
Repair, Replacement, and Maintenance Best Practices
When and How to Repair vs. Replace
In many cases, repair is feasible if the damage is superficial—such as minor seal leaks or external corrosion—without internal component wear. However, internal corrosion, piston scoring, or valve failure typically necessitate complete replacement. Modern master cylinders are designed with modularity in mind, but OEM standards often favor full replacement for reliability assurance.
Professional replacement begins with selecting a high-quality, OEM-compliant master cylinder. The procedure involves draining and flushing the brake fluid, disconnecting hydraulic lines, removing mounting hardware, and installing the new component. Bleeding the brake system comprehensively afterwards ensures elimination of air pockets, restoring optimal pressure.
Preventive Maintenance and Longevity Strategies
Regular fluid flushes—every 2 to 3 years depending on driving conditions—help prevent internal corrosion and seal deterioration. Using high-quality, DOT 3 or DOT 4 brake fluids with proper moisture resistance extends component lifespan. Additionally, inspecting brake lines and calipers for leaks or damage reduces undue stress on the master cylinder, contributing to overall system health.
Adherence to Industry Standards
Adopt industry-standard tools and follow manufacturer repair guidelines. Employ torque specifications and calibration procedures meticulously. For critical applications, consider diagnostic tools that verify internal pressure capacity post-repair. Certification from recognized bodies such as ASE (Automotive Service Excellence) enhances credibility and ensures safety compliance.
Impact of Master Cylinder Issues on Overall Brake System Performance
A malfunctioning master cylinder does not operate in isolation; it impacts the entire hydraulic brake system. Loss of pressure leads to uneven brake pad wear, increased stopping distances, and in worst-case scenarios, complete brake failure. Such failures compromise vehicle safety and can result in costly repairs or legal liabilities. Moreover, persistent issues may cause secondary damage, such as rotor warping or caliper seizure, further complicating repairs.
Hence, prompt diagnosis and intervention are critical. Ensuring the master cylinder functions flawlessly contributes to predictable brake pedal feel, consistent braking force, and ultimately, a safer driving experience.
Choosing Quality Components and Ensuring System Compatibility
Selecting the appropriate master cylinder involves verifying compatibility with the vehicle make, model, and trim. OEM replacements ensure proper fit and function, but aftermarket options with proven durability can provide cost-effective alternatives. Prioritize components with robust internal seals, corrosion-resistant coatings, and proven performance metrics.
It's also prudent to confirm fluid compatibility—using specified brake fluids prevents swelling or degradation of seals. Upgrading to a master cylinder with dual-circuit functionality might be worthwhile for added safety depending on vehicle specifications.
Future Trends and Technological Innovations
The evolution of brake systems towards electronic and hybrid configurations opens new avenues for master cylinder design. Electronic brakes, brake-by-wire systems, and adaptive braking technologies demand integrated sensors and actuators, making the traditional master cylinder more complex and interconnected.
For instance, regenerative braking in electric vehicles (EVs) influences hydraulic pressure dynamics, requiring advanced control modules and precision manufacturing of master cylinders that function seamlessly within these networks. The development of lightweight, high-performance materials also promises enhancements in response times and durability.
Final Considerations and Practical Takeaways
Master cylinders play an indispensable role in vehicle safety, demanding a blend of understanding technical intricacies and adopting meticulous maintenance routines. Regular inspections, early troubleshooting, and high-quality replacements ensure your brake system maintains optimal performance. By adhering to proven industry standards, leveraging expert insights, and staying abreast of technological advancements, vehicle owners and technicians can significantly mitigate risks associated with master cylinder failures.
What are the key signs indicating a failing master cylinder?
+Look for a spongy brake pedal, fluid leaks near the pedal assembly, increased braking distance, or pedal sinking to the floor. These symptoms suggest internal leaks or seal failures within the master cylinder requiring immediate attention.
How often should brake fluid be replaced to prevent master cylinder issues?
+Typically, brake fluid should be replaced every 2 to 3 years, depending on driving conditions and manufacturer recommendations. Regular fluid changes prevent moisture accumulation, which can corrode internal components and cause seal deterioration.
Is it necessary to replace the master cylinder entirely or can it be repaired?
+If the internal components are damaged or corroded, replacement is usually the most reliable solution. Minor external leaks or seal issues may be reparable, but for safety and durability, full replacement is often preferred.
What quality standards should I consider when selecting a new master cylinder?
+Opt for OEM-quality components that meet or exceed industry standards, with features like corrosion-resistant coatings, durable seals, and compatibility with the vehicle’s hydraulic system. Certifications from recognized bodies such as ISO or SAE can also guide quality assurance.
What role does brake fluid type play in master cylinder longevity?
+Using the manufacturer-recommended brake fluid—typically DOT 3, DOT 4, or DOT 5.1—ensures proper seal compatibility and moisture resistance. Incorrect fluids can lead to swelling of seals, internal corrosion, and reduced system lifespan.
