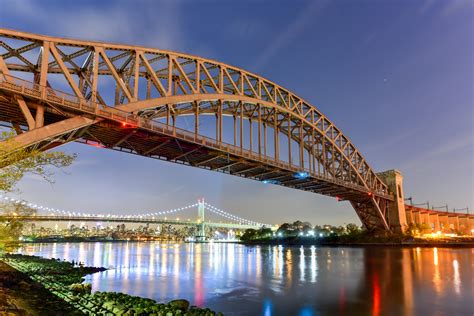

The Hell Gate Bridge, a monumental steel arch bridge located in New York City, has been a vital transportation artery connecting the boroughs of Queens and the Bronx since its completion in 1917. As a feat of engineering, the bridge spans the Hell Gate, a narrow strait in the East River, and has played a significant role in the development of the city's rail network. With its impressive design and structural complexity, the Hell Gate Bridge is an iconic landmark that has captivated the imagination of engineers, architects, and the general public alike.
Designed by Gustav Lindenthal, a renowned engineer of his time, the Hell Gate Bridge was constructed to provide a direct rail link between New York City and New England. The bridge's unique design features a majestic steel arch that rises 135 feet above the water, with a total length of 1,017 feet. The structure is supported by two granite piers, one on each side of the strait, which are anchored to the bedrock to provide stability and prevent erosion. The bridge's construction was a testament to the engineering prowess of the time, with over 30,000 tons of steel used in its fabrication.
Key Points
- The Hell Gate Bridge is a steel arch bridge that connects the boroughs of Queens and the Bronx in New York City.
- The bridge spans the Hell Gate, a narrow strait in the East River, and has a total length of 1,017 feet.
- Designed by Gustav Lindenthal, the bridge features a majestic steel arch that rises 135 feet above the water.
- The bridge was constructed to provide a direct rail link between New York City and New England.
- The structure is supported by two granite piers, one on each side of the strait, which are anchored to the bedrock to provide stability and prevent erosion.
History and Construction
The construction of the Hell Gate Bridge began in 1912 and took approximately five years to complete, with a workforce of over 2,000 laborers. The project was not without its challenges, as the treacherous waters of the Hell Gate posed significant risks to the construction team. Despite these obstacles, the bridge was finally completed on September 30, 1917, and was officially opened to rail traffic on April 1, 1917. The bridge’s construction marked a significant milestone in the development of New York City’s rail network, providing a direct link between the city and New England.
Engineering Feats
The Hell Gate Bridge is an engineering marvel, with several innovative features that set it apart from other bridges of its time. The bridge’s steel arch design, which was a novel concept at the time, provided unparalleled strength and stability, allowing it to withstand the harsh marine environment and heavy rail traffic. The bridge’s piers, which were built using a innovative caisson system, were designed to withstand the powerful currents of the East River, which can reach speeds of up to 5 miles per hour. The bridge’s construction also required the use of specialized equipment, including a massive crane that was capable of lifting 100-ton sections of steel into place.
| Structural Element | Specification |
|---|---|
| Length | 1,017 feet |
| Height | 135 feet |
| Steel Used | 30,000 tons |
| Pier Material | Granite |
| Construction Time | 5 years |
Impact and Legacy
The Hell Gate Bridge has had a profound impact on the development of New York City, providing a vital transportation link between the city and New England. The bridge has played a significant role in the growth of the city’s economy, facilitating the transportation of goods and people across the region. The bridge has also become an iconic landmark, with its majestic steel arch and granite piers making it a popular tourist destination. Today, the Hell Gate Bridge is recognized as a National Historic Civil Engineering Landmark, a testament to its enduring legacy as a feat of engineering excellence.
Preservation and Restoration
In recent years, the Hell Gate Bridge has undergone significant restoration work, aimed at preserving its structural integrity and maintaining its historic charm. The restoration project, which was completed in 2018, included the replacement of the bridge’s original railings, the repair of its granite piers, and the application of a protective coating to the steel arch. The project was undertaken by the Metropolitan Transportation Authority (MTA), in partnership with the New York City Department of Transportation (NYCDOT), and was funded by a combination of federal, state, and local funds.
What is the significance of the Hell Gate Bridge in New York City’s history?
+The Hell Gate Bridge is a vital transportation link between New York City and New England, and has played a significant role in the growth of the city’s economy. The bridge has also become an iconic landmark, with its majestic steel arch and granite piers making it a popular tourist destination.
What are some of the engineering feats of the Hell Gate Bridge?
+The Hell Gate Bridge features a novel steel arch design, which provides unparalleled strength and stability. The bridge’s piers, which were built using a innovative caisson system, were designed to withstand the powerful currents of the East River. The bridge’s construction also required the use of specialized equipment, including a massive crane that was capable of lifting 100-ton sections of steel into place.
What restoration work has been done on the Hell Gate Bridge in recent years?
+The Hell Gate Bridge has undergone significant restoration work in recent years, aimed at preserving its structural integrity and maintaining its historic charm. The restoration project included the replacement of the bridge’s original railings, the repair of its granite piers, and the application of a protective coating to the steel arch.
