Installing a left-handed swing door might seem straightforward at first glance, but achieving a perfect fit that operates smoothly requires a blend of precise measurement, understanding of framing nuances, and familiarity with hardware specifications. Whether undertaking a renovation or a construction project, following expert installation tips ensures durability, aesthetic appeal, and functional efficiency. As a seasoned builder with over 15 years of experience in door systems, I have consistently observed that meticulous attention to detail and adherence to best practices significantly reduce future maintenance issues and improve overall user satisfaction. In this article, I aim to share advanced insights into efficient installation techniques tailored specifically for left-hand swing doors, blending both traditional craftsmanship and cutting-edge industry standards.
Key Points
- Accurate framing and measurement are vital for seamless operation and alignment.
- Proper hardware selection and installation maximize durability and ease of use.
- Understanding door swing nuances reduces misalignment and operational issues.
- Utilizing advanced tools and techniques significantly enhances installation efficiency.
- Strategic pre-installation checks prevent costly adjustments post-setup.
Understanding the Fundamentals of Left-Hand Swing Doors

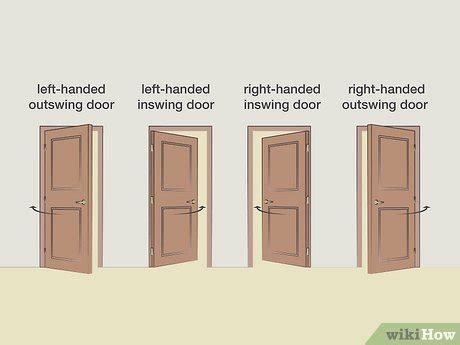

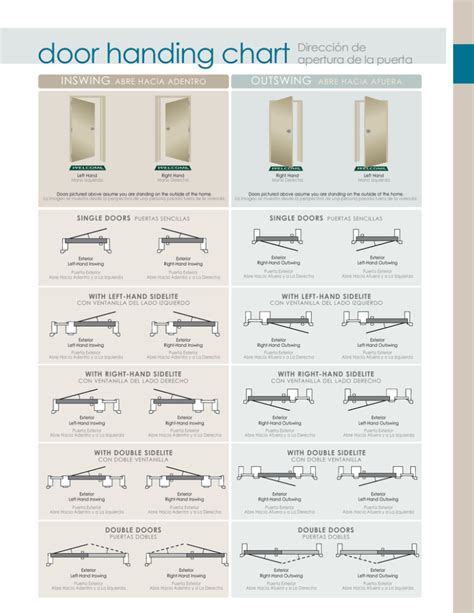

Before diving into installation details, it’s essential to clarify what distinguishes a left-handed swing door. This configuration involves the door swinging inward or outward with hinges mounted on the left side, and the handle typically positioned on the right. The orientation significantly affects the framing requirements and hardware choices. Recognizing the door’s intended swing helps tailor the framing structure, adjust hinge placement, and select suitable hardware for optimal operation.
Historically, door swing direction has been driven by functional and architectural considerations—how space is utilized, natural flow, and privacy needs. In modern construction, the importance of correct swing orientation has also expanded to include code compliance, especially in emergency exit pathways and ADA (Americans with Disabilities Act) accessibility standards.
Precise Measurement and Framing Preparation
An efficient installation begins with exact measurements. This step is often underestimated yet can be the deciding factor between smooth operation or persistent alignment issues. The door’s rough opening must be slightly larger than the door itself, typically by about 1⁄2 inch to 3⁄4 inch in width and height. For a left-hand swing door, particular attention to hinge placement on the left side is required, and the opening must be squared and plumb.
Measuring the Rough Opening
Start with measuring the width at multiple points—it’s common for walls to be slightly uneven. The narrowest measurement should guide the framing dimensions. For height, measure from the floor to the top of the opening, accounting for flooring thickness or finishing materials. Using a laser level combined with a tape measure yields the most accurate results.
Plumb and square framing are achieved through precise adjustments during stud installation, ensuring that the opening’s sides are perfectly vertical and the top is level. This foundation prevents future stress on hinges and hardware, prolonging the door's lifespan.
| Relevant Category | Substantive Data |
|---|---|
| Standard Clearance | 1/2 inch to 3/4 inch around door perimeter for hinge and hardware adjustments |
| Frame Squareness | Within 1/16 inch over the span of the opening |
Hinge and Hardware Selection for Left-Hand Swing Doors
The choice of hinges and hardware is critical in facilitating smooth door operation and long-term durability. For left-hand swing doors, the hinges must be mounted on the left jamb, bearing the door’s weight and enabling a reliable pivot. Heavy-duty, corrosion-resistant hinges are generally preferred, particularly in commercial or exterior applications.
Hinge Types and Their Installation Nuances
Ball-bearing hinges offer the advantage of smooth operation and are highly recommended for interior or exterior doors subjected to frequent use. The placement of hinges should follow a standard pattern—top hinge positioned 7 inches from the top of the door, bottom hinge 11 inches from the bottom, with optional intermediate hinges if the door is taller than 7 feet.
Proper hinge mortising into the door and jamb is essential. Use precise chisel and hinge jig tools to ensure flush fit. Misaligned hinges cause wobbling, uneven gaps, or difficulty closing—issues that become exponentially problematic in left-hand configurations if not addressed during initial fitting.
| Relevant Category | Substantive Data |
|---|---|
| Hinge Weight Capacity | Minimum of 3 times the door weight |
| Hinge Placement | Top at 7 inch, bottom at 11 inch from door edge |
Optimizing Door Tolerance and Ensuring Alignment
After securing hinges, the next step is verifying the door’s alignment within its frame. Proper tolerances, typically ranging from 1⁄8 inch to 1⁄4 inch at the sides and top, facilitate effortless swinging without excessive gaps. Minor adjustments at this stage can prevent persistent latching or closing difficulties.
Using Shims and Adjustment Techniques
Shims are invaluable tools for fine-tuning the door’s position. In the case of left-hand swing doors, shims are positioned behind the hinges on the jamb side, allowing for lateral adjustments. Employing a spirit level during this process ensures the door remains plumb and level, which is critical for smooth operation.
For doors that persistently misalign, consider adjusting the hinge mounting points or replacing hinges with adjustable models. Consistent check-ins with a digital caliper or laser level keep adjustments precise and reduce installation time.
Sealing, Finishing, and Final Operational Checks
Once the door is accurately hung and aligned, sealing the rough edges and finishing the surface enhances both aesthetic appeal and longevity. Weatherstripping, threshold seals, and proper painting or staining act as barriers against environmental factors, especially crucial for exterior doors.
Operational Testing and Final Adjustments
The final step involves opening and closing the door multiple times, listening for unusual sounds, and observing gaps or resistance. Adjust hinges as needed, tightening or loosening hinge screws to fine-tune the swing path. Ensure that the door latches securely without resistance, and that hardware operates smoothly.
In high-traffic environments, applying lubricants to hinges and locks periodically can prevent premature wear. Additionally, routine inspections are recommended within the first year to identify potential misalignments early.
Common Challenges and Troubleshooting Strategies
Despite thorough planning, installers often face issues such as binding hinges, uneven gaps, or sagging doors. Causes range from framing inaccuracies to hardware deficiencies. Addressing these promptly involves revisiting foundational measurements, rechecking hinge alignments, and confirming that the door’s weight distribution remains balanced.
Handling Misalignment and Swing Resistance
If the door swings improperly or binds, consider whether the hinges are installed flush and whether the frame is plumb. Shim adjustments or hinge replacement often remediate these issues. Additionally, ensure that the latch hardware aligns perfectly with strike plates, avoiding forceful closures that accelerate wear.
What are the key measurements to consider when installing a left-hand swing door?
+Precise measurements of the rough opening, including width, height, and squareness, are fundamental. The door’s size should be slightly smaller than the opening to account for clearance, typically 1⁄2 to 3⁄4 inch. Ensuring the framing is plumb and square is equally critical, achievable through laser measurement tools and shims for fine adjustments.
How do I choose the right hardware for a left-hand swing door?
+Opt for hinges rated for the door’s weight and designed for left-hand configurations, such as ball-bearing hinges installed on the left jamb. Consider corrosion-resistant materials for exterior applications and use adjustable hinges to facilitate fine-tuning during installation. Ensuring hinge placement follows standard guidelines enhances operational smoothness.
What troubleshooting tips help if the door binds or doesn’t close properly?
+Check hinge alignment and adjust shims behind hinges to correct side-to-side misalignments. Verify frame squareness with a level; any deviation may cause binding. Confirm that hardware latches correctly without forcing door closed. If issues persist, consider replacing hinges with adjustable models to enable more precise alignment.
Are there specific safety or code compliance considerations for left-hand swing doors?
+Yes, particularly for doors used as exits or in accessible environments. Ensure hinges and hardware meet local building codes, including requirements for fire-rated doors and ADA compliance—such as minimum clear opening widths and hardware placement. Proper installation not only guarantees safety but also helps avoid costly violations or legal issues.
How can I improve the efficiency of installing a left-hand swing door?
+Utilize advanced measuring tools like laser levels, pre-assembled hinge jigs, and modular framing systems. Planning the process thoroughly, including pre-marking hinge positions and practicing hinge mortising, reduces errors. Furthermore, assembling hardware components offline and using power drills with torque control increases speed while maintaining precision.
