Understanding how to address an oil pan leak swiftly and effectively is crucial for vehicle maintenance and longevity. Given the complexities of automotive engine components, a leaking oil pan not only risks engine damage due to oil starvation but also poses environmental hazards through oil spills. This guide synthesizes expert insights, practical tips, and detailed step-by-step procedures, drawn from seasoned automotive technician experiences and verified technical standards. Whether you're a DIY enthusiast or a professional mechanic, mastering the repair process enhances safety, reduces costs, and extends engine life. To achieve this, recognizing the root causes of leaks—ranging from worn gaskets to physical damage—is foundational, followed by selecting appropriate repair strategies tailored to the severity of the issue. Let's explore the comprehensive approach to fixing an oil pan leak, emphasizing timely intervention, technical accuracy, and durability of repair.
Key Points
- Early identification and accurate diagnosis prevent extensive engine damage.
- Preparatory steps such as securing vehicle stability and gathering proper tools are vital.
- Different repair methods—sealant application, gasket replacement, pan removal—serve specific leak scenarios.
- Surface cleaning and torque specifications ensure long-lasting repairs.
- Awareness of potential limitations and when to seek professional help optimizes outcomes.
Diagnosing an Oil Pan Leak: Signs, Causes, and Inspection Techniques
Before initiating repairs, correctly diagnosing the leak’s source is essential. Typical signs of an oil pan leak include oil spots underneath the vehicle, low oil levels, and visible oil residue on the oil pan or surrounding components. Visual inspection plays a critical role—look for oil streaks, crusted residue, or gasket degradation around the oil pan perimeter. Smell and consistency of oil can also indicate deterioration or contamination. Technicians often utilize UV dye and a blacklight to pinpoint elusive leaks, particularly when the oil stains are minimal or seepage occurs intermittently. Causes can range from physical impacts leading to dents or punctures, to gasket deterioration due to age, thermal cycles, or manufacturing defects. Recognizing whether the damage involves the gasket alone or if the oil pan itself has been compromised informs the repair approach—sealant application may suffice in minor cases, while pan removal is necessary for significant damage.
Tools, Materials, and Safety Precautions for Oil Pan Repair
Effective repair depends heavily on deploying the correct tools and ensuring safety measures are in place. Essential tools include a jack and jack stands, socket set with extensions, torque wrench, scraper or gasket remover, cleaning solvent, and possibly a rubber mallet. Materials involve a high-quality gasket or reusable sealant, gasket scraper, gasket sealant (if advised), new fasteners if stripped, and replacement oil filter and oil for topping off post-repair. Safety precautions emphasize working in a well-ventilated area, wearing safety glasses and gloves, ensuring the vehicle is securely elevated, and avoiding contact with hot engine components. Proper disposal of old oil and used gaskets complies with environmental regulations and prevents contamination.
Step-by-Step Procedure to Fix an Oil Pan Leak Effectively
1. Prepare the Workspace and Vehicle
Start by parking the vehicle on a level surface, engaging the parking brake, and allowing the engine to cool completely. Use wheel chocks to secure the wheels, and lift the vehicle using a hydraulic jack and support it on jack stands rated for the vehicle’s weight. Remove any components obstructing access to the oil pan, such as the exhaust shield or cross-members, following manufacturer-specific procedures and torque specifications.
2. Drain the Oil
Before removing or inspecting the oil pan, drain the engine oil into an approved container. Loosen the drain plug with a socket and allow the oil to evacuate entirely. Properly dispose of used oil to prevent environmental pollution. This step prevents spillage during pan removal and reduces weight, making handling easier.
3. Remove the Oil Pan
Use the appropriate socket to loosen the bolts securing the oil pan, working systematically from one side to the other to prevent warping. Some vehicles feature a flexible gasket or RTV sealant—consult the service manual for recommended procedures. Carefully pry the pan loose; a rubber mallet can aid in gentle separation if needed. Pay attention to any corrosion or damage that may have caused the leak, such as dents or cracks, and plan for necessary reinforcement or replacement.
4. Surface Cleaning and Inspection
Thoroughly clean the mating surfaces of both the oil pan and the engine block using a gasket scraper and solvent. Remove all residual gasket material, sealant, and debris. Be cautious not to scratch or gouge the surfaces, as imperfections can compromise the seal. Once cleaned, visually inspect for cracks, holes, or corrosion. Minor surface imperfections can often be corrected with local filing or sanding, but more severe damage warrants replacement of the pan or professional welding.
5. Repair or Replace the Oil Pan
If the oil pan exhibits minor dents, it can often be straightened carefully to restore proper sealing surface geometry. For cracks or punctures, options include professional welding or replacing the pan altogether. For gasket-related leaks, replacing the original gasket with a marine-grade or OEM recommended part is advised. If the pattern of use indicates gasket failure due to age or thermal cycling, replacing with a high-quality gasket with integrated sealant features improves durability.

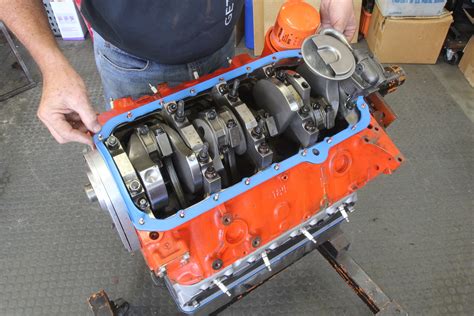

6. Reinstall the Oil Pan
Apply a thin layer of gasket sealant or install the new gasket, following manufacturer specifications. Position the oil pan carefully against the engine block, aligning bolt holes accurately. Hand-tighten bolts initially in a criss-cross pattern to distribute pressure evenly, then torque to specified values using a calibrated torque wrench—typically between 10-15 ft-lb, depending on the vehicle. Over-tightening risks deforming the pan or gasket, while under-tightening causes leaks.
7. Filling and Testing
Reinstall any components removed earlier, ensuring all fasteners are properly torqued. Refill engine oil to the recommended level, checking for leaks at the seal or gasket interface. Start the engine and monitor the area around the oil pan carefully. Look for signs of seepage or drips during running and after shutoff. Running the engine gently allows oil to circulate, revealing potential leaks that may have been missed during static inspection.
Common Pitfalls and How to Avoid Them
Despite meticulous adherence to procedures, common mistakes can compromise repair quality. Over-tightening bolts can distort the gasket surface, leading to recurring leaks. Using incompatible sealants or inadequate gasket material can cause early failure. Insufficient surface cleanliness leaves residual debris that prevents a proper seal. Rushing through bolt tightening without following torque patterns might result in uneven compression and leaks. To mitigate these issues, always follow manufacturer-recommended torque specs, use appropriate gasket or sealant materials, and allocate time for thorough cleaning and inspection. Additionally, consider environmental factors—extreme temperatures or road conditions may influence gasket choice and sealant application.
Advanced Considerations for Prolonged Repair Effectiveness
In high-mileage vehicles or instances of severe damage, extending repair lifespan involves strategic enhancements. For example, employing head-to-head surface refinishing to restore perfect sealing surfaces or opting for chemical metal repair kits for minor cracks. Applying a thread sealant or locking compound on fasteners can prevent loosening due to engine vibrations. Regular maintenance checks and monitoring oil levels post-repair are also vital. For vehicles with persistent leak issues, reviewing oil change intervals, engine cooling efficiency, and mounting hardware integrity can create a holistic approach to oil pan health.
When to Seek Professional Assistance
While many repairs are feasible DIY projects, some cases surpass typical capabilities. Extensive corrosion, large cracks, or surrounding engine component damage call for specialized tools and expertise. If after initial repairs the leak persists or if there’s uncertainty about the damage extent, consulting a certified automotive technician ensures correct diagnosis and durable repair. Additionally, complex engine configurations or highly specific parts may necessitate professional handling to prevent inadvertent further damage.
Conclusion: Mastering the Art of Oil Pan Leak Repairs
Fixing an oil pan leak efficiently demands a systematic approach—diagnosis, correct tool use, surface preparation, proper gasket or sealant application, and thorough torque procedures. Recognizing the cause, choosing appropriate repair methods, and executing steps with precision can mitigate engine damage risks and extend engine life. As with many repair processes, patience, adherence to specifications, and safety consciousness underpin success. With diligent practice and attention to detail, automotive enthusiasts and professionals alike can restore their vehicles’ integrity, securing reliability and performance for miles to come.
How do I identify a slow oil pan leak?
+Look for subtle oil stains under the vehicle, especially after parking for several hours. Using UV dye and a blacklight can help pinpoint the leak source if stains are faint or inconsistent.
Can I repair my oil pan without removing it?
+Minor leaks caused by surface imperfections or degraded gasket material may be temporarily sealed with high-quality sealant, but for a lasting fix, removing and replacing the gasket or pan is often necessary.
What are the risks of not fixing an oil pan leak promptly?
+Delayed repairs can lead to engine oil depletion, increased wear, overheating, and potential engine failure, along with environmental hazards from spilled oil contaminating soil and water sources.
How long does an oil pan repair typically take?
+Depending on vehicle make, model, and damage extent, repairs can take from 2 to 6 hours. Proper preparation and adherence to procedures ensure efficiency and quality of repair.
Is it better to replace the oil pan or repair it?
+If the pan has minor distortions or minor cracks, repair may suffice. However, severe damage or corrosion typically warrants replacement to guarantee a sealed, durable solution.
