Understanding the intricacies of piston ring maintenance and performance is fundamental for optimizing internal combustion engine efficiency, longevity, and power output. As an experienced mechanical engineer with over two decades specializing in engine design and rehabilitation, I have observed that piston rings are often underestimated components despite their critical role in sealing combustion chambers, controlling oil consumption, and transferring heat from the piston to the cylinder wall. Their proper maintenance, therefore, not only enhances engine performance but also prolongs component lifespan, reduces maintenance costs, and minimizes environmental impact through better fuel efficiency.
Fundamental Role of Piston Rings in Engine Functionality
Piston rings serve as the primary seal within an engine’s combustion chamber, performing multiple functions that are vital for efficient and clean operation. They create a pressure-tight barrier that prevents combustion gases from escaping into the crankcase, thereby maintaining optimal compression—an essential factor for power output. Simultaneously, piston rings regulate lubrication by controlling oil circulation to the cylinder walls, ensuring adequate lubrication while preventing excessive oil burn which can lead to increased emissions and engine deposits.
In essence, piston rings directly influence the engine's volumetric efficiency, thermal management, and emission levels. Advances in ring design, such as multi-piece configurations and special coating materials, reflect ongoing efforts to meet modern environmental standards and performance demands. Yet, even with innovative designs, proper maintenance practices remain crucial for sustaining their optimal performance over the engine's operational lifespan.

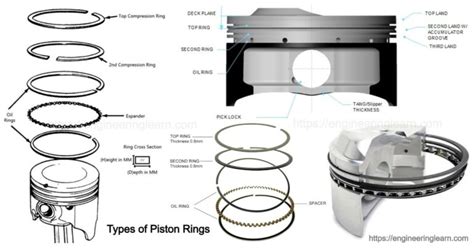

The Types of Piston Rings and Their Functional Specializations
Top Compression Ring
The top ring primarily manages compression sealing, often manufactured from cast iron or ductile iron due to their durability and wear resistance. Modern variants incorporate ceramic or chromium plating to reduce friction and enhance thermal resistance. The top ring encounters high-pressure combustion gases and elevated temperatures, making material choice pivotal for longevity and sealing efficiency.
Second (or Scraper) Ring
The second ring’s role is to improve oil control and scrape excess oil from the cylinder walls back into the crankcase. It often features a tapered or beveled edge to facilitate oil scraping, contributing significantly to reduced oil consumption and emissions. Its material and design balance between effective sealing and minimal friction to avoid power losses.
Oil Control Ring
Typically comprising a combined assembly with two thin, narrow rings and a spacer expander, the oil control ring employs a complex tension system that exerts the right pressure on cylinder walls to control oil film thickness. Variations in design—such as top and bottom scraper rings or notch-based configurations—are tailored to engine type and operating conditions.
Maintaining Optimal Piston Ring Performance: Practical Guidelines
Regular Inspection and Compression Testing
One of the most straightforward methods to assess piston ring condition is through compression and leak-down tests. These diagnostics measure the ability of the combustion chamber to retain pressure, with readings below manufacturer specifications indicating potential wear, carbon buildup, or improper ring seating. Regular testing, especially in high-mileage engines, provides early detection of performance degradation.
Proper Installation and Clearance Settings

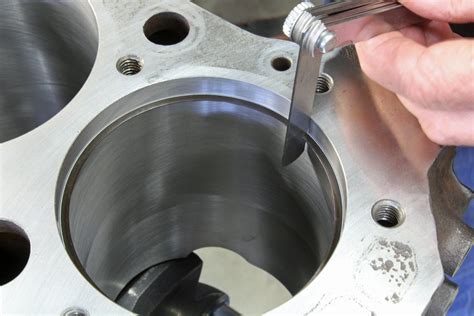

During engine rebuilding or piston ring replacement, meticulous attention to ring gap clearance is crucial. Typical gap tolerances vary between 0.15 mm to 0.5 mm depending on engine design and operational load, ensuring that rings expand adequately with temperature without protruding or causing scoring issues. Correct piston pin-to-ring alignment and proper piston-to-wall clearance also prevent uneven wear and ring sticking.
Lubrication Practices and Oil Quality
High-quality engine oil with appropriate additive packages reduces friction and cooling-related stresses on piston rings. Regular oil changes, using viscosity grades suited to operating conditions, delay ring wear and carbon buildup. Additionally, ensuring oil cleanliness and monitoring contamination levels prolongs ring and piston life.
Advanced Technologies and Materials Enhancing Piston Ring Durability
Recent developments include the application of thermal barrier coatings on ring faces and the use of composite materials featuring molybdenum or graphite-infused layers to minimize friction and withstand higher temperatures. These innovations address the demands of modern high-performance and environmental standards.
| Relevant Category | Substantive Data |
|---|---|
| Operating Temperature Range | Up to 350°C for modern high-performance rings, with coating enhancements sustaining integrity above 400°C |
| Wear Rate | Average wear rate of 0.02 mm per 1,000 hours of operation, with ceramic coatings reducing wear by up to 50% |
| Oil Consumption Impact | Properly maintained piston rings can reduce oil consumption by as much as 70%, significantly lowering emissions |
Common Challenges and How to Address Them
Piston ring wear, scoring, and sticking are prevalent issues that compromise engine sealing and efficiency. Causes range from improper installation, poor lubrication, excessive carbon deposits, to thermal cycling stress. Addressing these issues involves a combination of preventive maintenance, using quality components, and applying proper operating techniques.
Additionally, engine design modifications—such as tighter ring gaps or specialized coatings—are increasingly employed to push performance boundaries. However, these improvements must be balanced against manufacturing tolerances and operational realities. In older engines, manual cleaning of carbon buildup and timely ring replacement can restore performance without extensive overhaul.
Future Directions in Piston Ring Technology
Looking ahead, research emphasizes the integration of nanomaterials and smart coatings capable of detecting wear or temperature anomalies in real-time. Such innovations promise predictive maintenance capabilities, reducing downtime and preventing catastrophic failures. Additionally, the advent of alternative fuels and hybrid systems pushes for piston rings that can withstand chemically aggressive environments and rapid thermal fluctuations.
Key Points
- Precision in installation and material choice are paramount for optimal piston ring performance
- Regular diagnostics can preempt potential failures and extend engine life
- Advanced coating technologies significantly improve durability under demanding conditions
- Future innovations aim towards smart, sensor-integrated rings for predictive maintenance
- Overall strategy involves balancing material technology, design precision, and maintenance practices for peak efficiency
How often should piston rings be replaced?
+The frequency of piston ring replacement varies based on engine type, operating conditions, and maintenance regimes. Typically, in passenger vehicles, rings are inspected during major engine overhauls or after reaching approximately 150,000 km (93,000 miles). Signs of wear include loss of compression, increased oil consumption, and abnormal engine noise, which warrants immediate attention. In high-performance engines or heavy-duty applications, more frequent inspections—roughly every 50,000 km—are advisable to prevent performance deterioration.
What are the signs of piston ring failure?
+Indicators include a significant drop in engine compression, excessive smoke from the exhaust (blue or black), oil fouling on spark plugs, and decreased fuel efficiency. Additionally, engine knocking and irregular idle can point toward compromised sealing or stuck rings. Early detection through routine diagnostics can prevent more serious damage and costly repairs.
Are there differences in piston rings for different engine types?
+Yes, piston rings are tailored based on engine architecture, operating temperature, and fuel/air mixture characteristics. For example, diesel engines require rings with higher wear resistance due to higher combustion pressure, while racing engines often utilize ultra-light, low-friction coatings. Hybrid and electric powertrains may incorporate piston rings that resist chemically aggressive lubricants or contribute to thermal management strategies.
Can improper lubrication cause piston ring damage?
+Absolutely. Inadequate lubrication leads to increased friction and heat, causing accelerated wear, scuffing, or scoring of piston rings. Contaminated or degraded oil diminishes its protective properties, while using incorrect viscosity can impair ring oscillation and sealing effectiveness. Consistent oil maintainance, along with high-quality lubricants, is central to preserving piston ring integrity.
