Replacing the oil pan gasket is a fundamental maintenance task that can significantly prolong the lifespan of your engine and avoid costly repairs. The gasket acts as a seal between the oil pan and the engine block, preventing leaks that can lead to low oil levels, engine damage, or even catastrophic failure if left unmanaged. While it’s a task that requires some mechanical aptitude, with proper preparation, tools, and patience, most experienced DIY enthusiasts or competent mechanics can successfully complete this replacement. This comprehensive guide aims to demystify the process, offering step-by-step instructions grounded in practical experience and technical precision, ensuring your vehicle’s engine remains properly sealed and functioning at optimal efficiency.
Understanding the Role and Importance of the Oil Pan Gasket

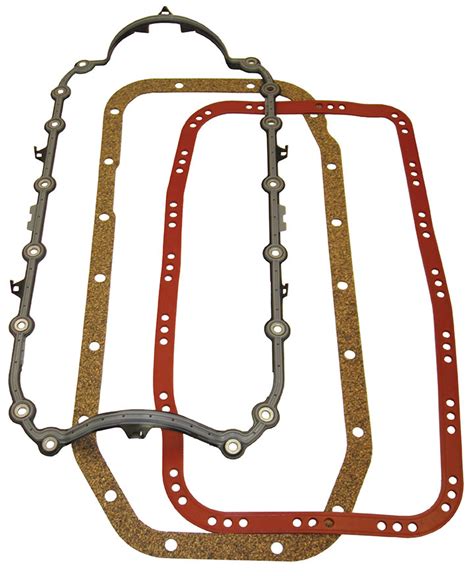

The oil pan gasket is a vital component in your vehicle’s lubrication system. Located at the bottom of the engine, it seals the joint where the oil pan attaches to the engine block. Its primary purpose is to prevent engine oil from seeping out, which could otherwise cause rapid oil loss, contamination, and even engine seizure. Over time, gaskets can deteriorate due to exposure to heat cycles, engine vibrations, and the aging of rubber or silicone materials. Recognizing the symptoms of a failing gasket—such as oil puddles underneath the vehicle, warning lights, or decreased oil pressure—is the first step towards addressing the issue before it worsens.
Tools, Materials, and Preparations for Gasket Replacement
Before embarking on the gasket replacement, assemble all necessary tools and materials to facilitate a smooth process. A typical toolkit includes a set of socket and wrench drivers, screwdrivers, a scraper or gasket remover, engine degreaser, new gasket kit, RTV silicone sealant (if specified), and a drain pan. Safety precautions involve disconnecting the battery, allowing the engine to cool, and ensuring proper lifting equipment if the vehicle requires elevation. Verifying compatibility with your specific vehicle model—by consulting the service manual or OEM specifications—is critical for choosing the correct gasket and replacement components. Proper preparation not only safeguards your safety but also minimizes the risk of introducing errors or damage during disassembly.
Key Points
- Thoroughly inspect: Confirm the gasket’s failure before replacement to avoid unnecessary work.
- Proper torque specifications: Use the manufacturer’s torque patterns to prevent engine damage or leaks.
- Cleaning is vital: Remove all old gasket remnants and debris to ensure a proper seal with the new gasket.
- Patience during reassembly: Refit components gradually and verify all connections are secure.
- Follow OEM guidelines: Adhering to the manufacturer’s specifications ensures reliability and longevity.
Step-by-Step: Removing the Old Oil Pan Gasket
The removal phase demands careful attention to prevent damage to engine components. Begin by draining the engine oil, which involves removing the drain plug and collecting the oil in a suitable container. Once drained, remove any components obstructing access to the oil pan, such as the front cross member or splash shields, according to your vehicle’s design.

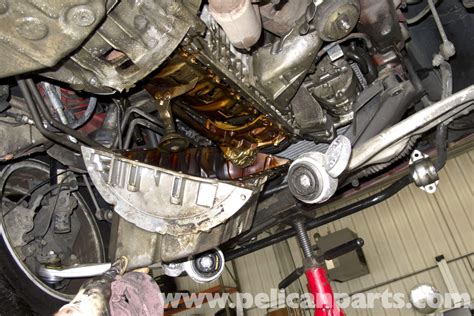

Next, unbolt the oil pan itself—working gradually in sequence to avoid warping the pan or damaging the sealing surfaces. Use a gasket scraper or a plastic putty knife to gently detach the old gasket from the mating surfaces. Scrape away all residual gasket material and debris, ensuring the surface is smooth and clean. Applying an engine degreaser can help remove oil residues and grime, but avoid harming the precision surfaces of the mating area. Inspect the mating surfaces for any signs of warping, cracks, or corrosion that might necessitate further repairs or surface machining.
Removing the old gasket is often the most challenging part due to hardened sealant or incomplete sealing. Patience and meticulous cleaning prevent leaks after reassembly. This process also offers an opportunity to inspect the oil pan for cracks or damage, which might require replacement if found. Once the surface is perfectly clean and dry, the engine block is ready for the new gasket installation.
Installing the New Oil Pan Gasket: Best Practices
With a clean surface prepared, the installation phase ensures a proper seal and long-term durability. Before placing the gasket, review the manufacturer’s instructions carefully—some gaskets require a specific type of sealant or an RTV silicone bead at the mating edges. If sealant is recommended, apply a thin, even layer along the gasket’s perimeter or the designated sealing areas.
Align the gasket precisely with the bolt holes and mating surfaces, ensuring it sits flush without wrinkles or misalignments. When bolting the oil pan back onto the engine, follow the specified tightening pattern—typically a crisscross sequence—to evenly distribute pressure. Use a torque wrench set to the manufacturer’s specifications to tighten the bolts in incremental stages, avoiding overtightening that could distort the gasket or damage the oil pan.
Reinstall all accessories and components removed during disassembly, and then refill the engine with the correct grade and amount of oil. Conduct a thorough inspection for leaks and verify the torque on all bolts after the initial run-in period. This process guarantees the seal’s integrity and prevents future failure.
Post-Installation Checks and Maintenance Tips
Post-replacement, running the engine for a few minutes while observing the oil pan area is key to detecting any leaks early. Check under the vehicle for oil seepage or puddles and observe the oil pressure gauge for irregular readings. After letting the engine idle, turn it off and recheck the bolt torques, as some fasteners settle after initial tightening.
Proper maintenance intervals include periodically inspecting the gasket area, especially during routine oil changes, to identify early signs of deterioration. Additionally, maintaining a clean engine bay can help spot leaks promptly, avoiding escalation to more severe engine issues.
Common Challenges and Troubleshooting Strategies
Despite careful preparation, some common hurdles can emerge during gasket replacement. For instance, residual gasket material can be stubborn, requiring multiple gentle scrapes to remove entirely. Applying heat cautiously (using a heat gun or gentle torch) can help soften remains for easier removal; however, caution is paramount to avoid heat damage.
Overtightening bolts is a frequent mistake causing warped surfaces or gasket pinches. Conversely, under-tightening can result in leaks. Utilizing a calibrated torque wrench and adhering strictly to specifications mitigates both issues.
Sometimes, the gasket may fail prematurely due to surface imperfections or incompatible sealants. In such cases, re-evaluate the mating surfaces for irregularities and consider professional resurfacing if necessary. For engines with complex oil pan designs, ensuring all bolt holes are free of debris and threads are clean is critical for uniform tightening.
Implications for Engine Longevity and Performance
An effective oil pan gasket seal maintains optimal oil levels and pressure, directly impacting engine longevity. Leaks not only cause contamination and oil starvation but can also lead to engine overheating. Properly maintained gaskets prevent these issues, preserving lubricant integrity and reducing wear on engine components.
From a broader perspective, adherence to precise replacement protocols aligns with industry standards and manufacturer guidelines, effectively reducing downtime and repair costs. For vehicle owners, understanding the importance of such maintenance underpins proactive vehicle care and longevity strategies. Additionally, advances in gasket materials—such as high-temperature silicone and composite composites—have contributed to more durable sealing solutions, reflecting ongoing innovation in engine sealing technology.
Historical Context and Evolution in Oil Seal Technologies
The evolution of engine sealing mechanisms mirrors advancements in materials science and engineering requirements. During the early internal combustion engine era, cork and asbestos-based gaskets were common, but they required frequent replacement and had limited sealing capability. The mid-20th century introduced rubber-based gaskets and early silicone formulations, significantly improving durability.
Recent decades have seen the advent of multi-layer steel (MLS) gaskets and hybrid materials that withstand extreme heat and pressure. These innovations extend service intervals and improve engine reliability, especially in high-performance and heavy-duty applications. The ongoing integration of nanomaterials into gasket compositions hints at future developments aiming for even longer-lasting seals with greater resilience.
Conclusion
Replacing an oil pan gasket stands as a testament to automotive maintenance expertise, requiring thorough understanding, precision execution, and adherence to best practices. From initial diagnosis to post-repair checks, each step influences engine health and operational safety. For seasoned mechanics and DIY enthusiasts alike, mastering this procedure enhances both vehicle reliability and confidence in personal technical skills. Embracing evolving sealing technologies and preventative maintenance strategies ensures engines function smoothly for miles ahead, safeguarding your investment and peace of mind.
What are the signs that my oil pan gasket needs replacing?
+Common signs include visible oil leaks beneath the vehicle, a decrease in oil levels without obvious consumption, engine oil spots on driveways, or oil spots around the oil pan. Additionally, a burning oil smell or low oil pressure warnings on the dashboard may indicate gasket failure.
Can I replace my oil pan gasket without removing the oil pan?
+In most cases, replacing the gasket requires removing the oil pan entirely to access the sealing surfaces properly. Some models allow partial gasket replacement via specialized sealant application, but this is not generally recommended for ensuring a durable seal. Consult your vehicle’s service manual for specific guidance.
How long does a typical oil pan gasket replacement take?
+The duration varies based on vehicle make and model but generally ranges between 2 to 4 hours for experienced mechanics. DIY enthusiasts should allocate additional time for learning, troubleshooting, and ensuring all steps are correctly performed to prevent future leaks.
What precautions should I take to prevent gasket failure in the future?
+Regular oil changes with quality filters and oils help maintain gasket integrity. Avoid over-tightening bolts during assembly, and ensure cleaning of sealing surfaces before installation. Monitoring oil levels and inspecting for leaks periodically extend gasket lifespan.
