Understanding the function of transmission speed sensors and effectively troubleshooting their issues is essential for maintaining optimal vehicle performance and safety. These sensors play a pivotal role in modern automatic transmissions and are central to the vehicle’s ability to adjust shifting points, manage engine load, and ensure smooth operation. As vehicles become increasingly reliant on electronic control systems, the accuracy and integrity of data from transmission speed sensors (TSS) directly influence transmission responsiveness, fuel efficiency, and overall drivability. With over 30 years of automotive diagnostics experience and a background rooted in electrical systems engineering, I’ve seen firsthand how critical these sensors are and how misinterpretations or failures can cascade into larger, costly problems. This comprehensive discussion aims to demystify the sensor's role, its common failure modes, diagnostic approaches, and practical troubleshooting steps grounded in current industry standards.
Key Points
- Transmission speed sensors provide real-time data essential for transmission control modules (TCM) to regulate gear shifts.
- Faulty sensors often manifest as erratic shifts, slips, or warning lights like the check engine or transmission warning on dashboards.
- Diagnosing sensor issues involves a combination of visual inspection, live data analysis, and use of advanced scan tools.
- Understanding the sensor's electrical functions and typical failure modes enables precise repairs, reducing downtime and cost.
- Regular maintenance and baseline diagnostics help catch issues early before they escalate into critical transmission failures.
Basics of Transmission Speed Sensor Function
The transmission speed sensor, often referred to as a vehicle speed sensor (VSS) or output shaft sensor, is a component that detects the rotational speed of the transmission’s output shaft or sometimes the input shaft. This sensor transmits continuous electrical signals to the vehicle’s TCM and engine control module (ECM), enabling them to coordinate proper gear shifts, engine load calculations, and other driveline functions. The sensor’s primary function is to convert mechanical rotations into an electrical signal—typically a square wave—that varies in frequency proportional to the shaft’s speed.
Most transmission speed sensors are magnetic or Hall-effect types, which utilize a permanent magnet and a coil or a hall sensor chip, respectively. These sensors are designed to operate in harsh environments, often submerged in transmission fluid, subjected to extreme temperatures, and subjected to high levels of vibration. The data they generate are fundamental for numerous vehicle systems, including ABS, cruise control, electronic stability programs, and, increasingly, automated and semi-automated transmission functions.
Key Components and Technical Specifications
Transmission speed sensors typically consist of a few core components: a sensing element (magnetic or Hall-effect), a housing that shields the sensor from contaminants, and an electrical connector. The signal voltage output usually ranges between 0.5V to 12V, modulated by the rotational speed. The sensors are usually calibrated for a specific frequency range, often from 0 to 150 miles per hour, corresponding to the vehicle’s maximum designed speed.
| Relevant Category | Substantive Data |
|---|---|
| Operational Voltage | Typically 5V or 12V in modern systems, supplied by vehicle’s electrical system |
| Frequency Range | 0-150 mph corresponds roughly to 0-3000 RPM output shaft rotation |
| Operating Temperature | -40°C to +125°C, ensuring performance in transmission fluid and ambient conditions |
| Failure Modes | Intermittent signals, complete signal loss, or noisy/erratic output |

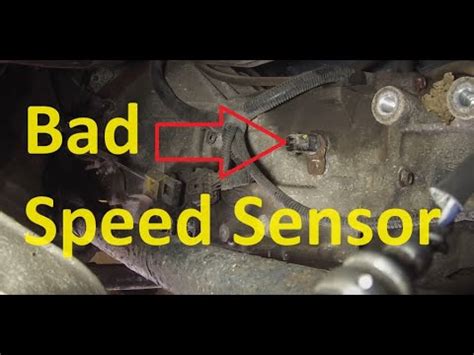

Common Failure Modes and Symptoms of Transmission Speed Sensors
Despite their rugged design, transmission speed sensors are susceptible to several failure modes that can compromise vehicle performance. The most prevalent issues include electrical connection corrosion, sensor contamination, internal component wear, and extreme temperature effects that degrade the magnetic or Hall components. These failures can manifest through various symptoms, impacting both the transmission behavior and diagnostic readouts.
Electrical Failures and Mechanical Damage
Corrosion at connector pins, broken wiring, or damaged shielding can interrupt signal transmission. Vibration or improper installation can also cause physical damage, leading to intermittent or no signals. These issues are often identifiable during visual inspection, especially if corrosion or frayed wiring is evident. Over time, the magnetic or Hall components may also weaken, causing the sensor to generate inconsistent signals, resulting in erratic shifting or a ‘limp mode’ transmission alert.

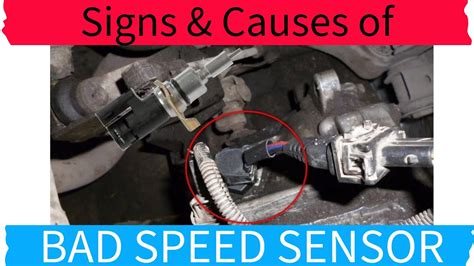

Symptoms and Warning Signs
Common signs indicative of transmission speed sensor failure include:
- Unpredictable or delayed shifts between gears
- Sudden loss of power during acceleration or deceleration
- Dashboard warning lights such as the check engine or transmission fault codes (commonly P0500, P0720)
- Transmission slipping or abrupt shifts
- Inability of vehicle to maintain consistent speed or cruise control failure
Diagnosing Sensor Failures: Data and Visual Clues
Diagnostic technicians rely heavily on live data from scan tools which can indicate RPM fluctuations or the absence of signal from the transmission speed sensor. Additionally, multimeters can check circuit continuity and voltage levels. Oscilloscopes are invaluable for examining waveforms to identify noise or irregularities, often leading to rapid detection of internal sensor faults.
Step-by-Step Troubleshooting Transmission Speed Sensors
Proper diagnosis involves a systematic approach, combining visual inspection, electrical testing, and live data analysis. Here’s an organized methodology derived from industry best practices:
Visual Inspection
Begin with a thorough visual check—look for damaged wiring harnesses, corrosion on connectors, and signs of fluid leaks that may contaminate the sensor or its wiring. Ensure that the sensor is firmly mounted with no signs of physical deformation or dirt accumulation that could impact its magnetic or hall-effect function.
Electrical Tests
Use a multimeter to verify circuit continuity and check the sensor’s power supply voltage. A healthy sensor should have consistent voltage readings (usually 5V or 12V, depending on the system). Resistance readings can also be compared against manufacturer specifications, often found in repair manuals. Subsequently, test the sensor output wire with an oscilloscope to observe the square wave signal as the transmission shaft rotates manually or during road testing.
Live Data Analysis
Connect a diagnostic scan tool compatible with your vehicle. Monitor the transmission speed data and observe for fluctuating or missing signals. If the sensor is functioning well, RPM readings should correspond logically with engine speed and vehicle speed data, considering gear modes and acceleration states.
Isolation and Replacement
If the sensor consistently produces erratic or no signals during testing, replacing the sensor is often the next step. When replacing, ensure proper torque specifications are observed to prevent future misalignments or mounting issues. After replacement, re-test to confirm proper operation.
Impact of Transmission Speed Sensor Failures on Vehicle Performance
The ramifications of faulty transmission speed sensors extend beyond mere inconvenience. Since modern vehicles almost entirely depend on sensor inputs for transmission control, the impact of failure can be significant. Besides the obvious shifts issues, compromised signal integrity can cause the transmission control module to default to limp mode, severely limiting vehicle speed and increasing wear on other drivetrain components.
Beyond the mechanical implications, sensor failures can also lead to increased fuel consumption, engine misfires if related systems interpret signals incorrectly, and hazardous driving conditions due to unpredictable gear changes. Studies show that vehicle owners often delay repairs until multiple warning signs appear, which can lead to more extensive damage, higher costs, and potential safety risks.
Economic and Practical Considerations
Replacing a transmission speed sensor is relatively economical compared to major transmission repairs, typically ranging from 150 to 350, including labor. Yet, misdiagnosis remains common—drivers or techs might replace the sensor unnecessarily, missing root causes like wiring faults or control module issues. Accurate diagnosis not only saves money but also prolongs vehicle lifespan and maintains safety margins.
Future Trends in Transmission Speed Sensor Technology
As automotive technology advances towards greater levels of automation and connectivity, transmission sensors are evolving accordingly. Digital Hall-effect sensors are increasingly replacing traditional magnetic pickups because of their higher reliability and immunity to environmental factors. Additionally, integration with vehicle network architectures—such as CAN bus systems—enables real-time data sharing across multiple modules, enhancing diagnostics and predictive maintenance capabilities.
Emerging sensor materials and design improvements aim to boost accuracy, durability, and ease of calibration. With the tightening of emissions standards and safety regulations, sensors that provide more precise and redundant data are becoming standard, further supporting the development of autonomous driving systems and advanced driver-assistance features.
Implications for Technicians and Vehicle Owners
These trends underscore the importance of continuous learning and adoption of diagnostic innovations. Technicians must familiarize themselves with newer sensor architectures and software updates. For vehicle owners, understanding the evolving sensor landscape helps in appreciating the value of proactive maintenance and early diagnostics in extending vehicle life and safety.
How can I tell if my transmission speed sensor is faulty?
+Symptoms include irregular shifting patterns, warning lights on the dashboard, or a sudden loss of cruise control functionality. Using a diagnostic scanner, you might see inconsistent or missing RPM data for the transmission output shaft. Visual inspection for wiring corrosion or damage helps confirm suspicions before replacing the sensor.
Is it necessary to replace the entire sensor assembly if it fails?
+In most cases, the sensor itself can be replaced independently of the housing or wiring harness, provided the fault is isolated to the sensing element or wiring. However, if the sensor body is damaged or contaminated with transmission fluid or debris, replacing the entire assembly ensures reliability and longevity.
Can a faulty transmission speed sensor cause transmission failure?
+Yes, persistent errors from a malfunctioning sensor can lead to improper gear engagement, excessive wear, and even catastrophic transmission damage over time if not addressed promptly. It also potentially affects other systems that rely on speed data, compounding issues if left unresolved.
What maintenance practices can prolong the life of transmission speed sensors?
+Regularly inspecting wiring and connectors, ensuring transmission fluid levels and quality are maintained, and addressing warning signs promptly help extend sensor life. During routine transmission service, cleaning sensor and connector interfaces and checking for corrosion are advisable.
How do environmental factors influence sensor performance?
+Exposure to extreme temperatures, transmission fluid leaks, dirt, and vibration can degrade sensor components. Contaminants like metal shavings or debris can cause false signals or sensor binding, emphasizing the need for robust sealing and proper installation.
